首页 > 产品展示 > 超重荷重超重荷重

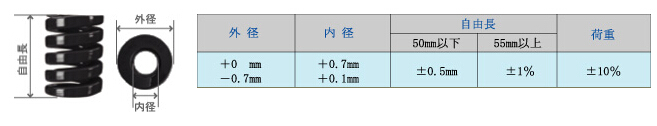

外径
mm

内径
mm

自由长
mm

弹簧常数

紧贴长
mm(*)

30万回

50万回

100万回

Code No.

N/mm

kgf/mm

压缩量
mm

荷重
N(kgf)

压缩量
mm

荷重
N(kgf)

压缩量
mm

荷重
N(kgf)

10.00	5.00	15.00	163.80	16.70	11.40	3.00	490/（50）	2.70	441/（45）	2.40	392/（40）	*	BLA10-15
		20.00	122.60	12.50	15.20	4.00		3.60		3.20		*	BLA10-20
		25.00	98.10	10.00	19.00	5.00		4.50		4.00		*	BLA10-25
		30.00	81.40	8.30	22.80	6.00		5.40		4.80		*	BLA10-30
		35.00	69.60	7.10	26.60	7.00		6.30		5.60		*	BLA10-35
		40.00	61.80	6.30	30.40	8.00		7.20		6.40		*	BLA10-40
		45.00	54.90	5.60	34.20	9.00		8.10		7.20		*	BLA10-45
		50.00	49.00	5.00	38.00	10.00		9.00		8.00		*	BLA10-50
		55.00	44.10	4.50	41.80	11.00		9.90		8.80		*	BLA10-55
		60.00	41.20	4.20	45.60	12.00		10.80		9.60		*	BLA10-60
		65.00	41.20	3.80	49.40	13.00		11.70		10.40		*	BLA10-65
		70.00	35.30	3.60	53.20	14.00		12.60		11.20		*	BLA10-70
		75.00	32.40	3.30	57.00	15.00		13.50		12.00		*	BLA10-75
		80.00	30.40	3.10	60.80	16.00		14.40		12.80		*	BLA10-80
		90.00	27.50	2.80	68.40	18.00		16.20		14.40		*	BLA10-90
		100.00	24.50	2.50	76.00	20.00		18.00		16.00		*	BLA10-100

12.00	6.00	20.00	184.40	18.80	15.20	4.00	735/(75)	3.60	662/(68)	3.20	588/(60)	*	BLA12-20
		25.00	147.10	15.00	19.00	5.00		4.50		4.00		*	BLA12-25
		30.00	122.60	12.50	22.80	6.00		5.40		4.80		*	BLA12-30
		35.00	104.90	10.70	26.60	7.00		6.30		5.60		*	BLA12-35
		40.00	92.20	9.40	30.40	8.00		7.20		6.40		*	BLA12-40
		45.00	81.40	8.30	34.20	9.00		8.10		7.20		*	BLA12-45
		50.00	73.60	7.50	38.00	10.00		9.00		8.00		*	BLA12-50
		55.00	66.70	6.80	41.80	11.00		9.90		8.80		*	BLA12-55
		60.00	61.80	6.30	45.60	12.00		10.80		9.60		*	BLA12-60
		65.00	56.90	5.80	49.40	13.00		11.70		10.40		*	BLA12-65
		70.00	53.00	5.40	53.20	14.00		12.60		11.20		*	BLA12-70
		75.00	49.00	5.00	57.00	15.00		13.50		12.00		*	BLA12-75
		80.00	46.10	4.70	60.80	16.00		14.40		12.80		*	BLA12-80
		90.00	41.20	4.20	68.40	18.00		16.20		14.40		*	BLA12-90
		100.00	37.30	3.80	76.00	20.00		18.00		16.00		*	BLA12-100

14.00	7.00	25.00	190.30	19.40	19.00	5.00	951/(97)	4.50	856/(87)	4.00	761/(78)	*	BLA14-25
		30.00	158.90	16.20	22.80	6.00		5.40		4.80		*	BLA14-30
		35.00	136.30	13.90	26.60	7.00		6.30		5.60		*	BLA14-35
		40.00	118.70	12.10	30.40	8.00		7.20		6.40		*	BLA14-40
		45.00	105.90	10.80	34.20	9.00		8.10		7.20		*	BLA14-45
		50.00	95.10	9.70	38.00	10.00		9.00		8.00		*	BLA14-50
		55.00	86.30	8.80	41.80	11.00		9.90		8.80		*	BLA14-55
		60.00	79.40	8.10	45.60	12.00		10.80		9.60		*	BLA14-60
		65.00	73.60	7.50	49.40	13.00		11.70		10.40		*	BLA14-65
		70.00	67.70	6.90	53.20	14.00		12.60		11.20		*	BLA14-70
		75.00	63.70	6.50	57.00	15.00		13.50		12.00		*	BLA14-75
		80.00	59.80	6.10	60.80	16.00		14.40		12.80		*	BLA14-80
		90.00	53.00	5.40	68.40	18.00		16.20		14.40		*	BLA14-90
		100.00	48.10	4.90	76.00	20.00		18.00		16.00		*	BLA14-100

16.00	8.00	25.00	255.00	26.00	19.00	5.00	1275/(130)	4.50	1147/(117)	4.00	1020/(104)	*	BLA16-25
		30.00	212.80	21.70	22.80	6.00		5.40		4.80		*	BLA16-30
		35.00	182.40	18.60	26.60	7.00		6.30		5.60		*	BLA16-35
		40.00	159.90	16.30	30.40	8.00		7.20		6.40		*	BLA16-40
		45.00	141.20	14.40	34.20	9.00		8.10		7.20		*	BLA16-45
		50.00	127.50	13.00	38.00	10.00		9.00		8.00		*	BLA16-50
		55.00	115.70	11.80	41.80	11.00		9.90		8.80		*	BLA16-55
		60.00	105.90	10.80	45.60	12.00		10.80		9.60		*	BLA16-60
		65.00	98.10	10.00	49.40	13.00		11.70		10.40		*	BLA16-65
		70.00	91.20	9.30	53.20	14.00		12.60		11.20		*	BLA16-70
		75.00	85.30	8.70	57.00	15.00		13.50		12.00		*	BLA16-75
		80.00	79.40	8.10	60.80	16.00		14.40		12.80		*	BLA16-80
		90.00	70.60	7.20	68.40	18.00		16.20		14.40		*	BLA16-90
		100.00	63.70	6.50	76.00	20.00		18.00		16.00		*	BLA16-100

18.00	9.00	25.00	313.80	32.00	19.00	5.00	1569/(160)	4.50	1412/(144)	4.00	1255/(128)	*	BLA18-25
		30.00	261.80	26.70	22.80	6.00		5.40		4.80		*	BLA18-30
		35.00	224.60	22.90	26.60	7.00		6.30		5.60		*	BLA18-35
		40.00	196.10	20.00	30.40	8.00		7.20		6.40		*	BLA18-40
		45.00	174.60	17.80	34.20	9.00		8.10		7.20		*	BLA18-45
		50.00	156.90	16.00	38.00	10.00		9.00		8.00		*	BLA18-50
		55.00	142.20	14.50	41.80	11.00		9.90		8.80		*	BLA18-55
		60.00	130.40	13.30	45.60	12.00		10.80		9.60		*	BLA18-60
		65.00	120.60	12.30	49.40	13.00		11.70		10.40		*	BLA18-65
		70.00	111.80	11.40	53.20	14.00		12.60		11.20		*	BLA18-70
		75.00	104.90	10.70	57.00	15.00		13.50		12.00		*	BLA18-75
		80.00	98.10	10.00	60.80	16.00		14.40		12.80		*	BLA18-80
		90.00	87.30	8.90	68.40	18.00		16.20		14.40		*	BLA18-90
		100.00	78.50	8.00	76.00	20.00		18.00		16.00		*	BLA18-100
